Insulating crepe kraft paper tube high quality crepe kraft paper

FOB Reference Price:Get Latest Price
$1.90 - $2.80 / Kilograms | 1 Kilogram/Kilograms (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China
Brand Name:
Youda
Model Number:
Crepe paper tube
Type:
Insulation Paper
Material:
wood pulp
Application:
Low Voltage
Rated Voltage:
15KV/mm
Tensile Strength:
Excellent
Length:
1000mm
Wall Thickness:
1mm-3mm
ID Diameter:
3mm-40mm
ID Tolerance:
0.5mm
OD Tolerance:
1.0mm
Color:
natural
Sample:
free
Standard:
IEC60554
Certification:
ISO9001:2008
Usage:
electric transformer
Supply Ability
Supply Ability:
100 Ton/Tons per Month
Packaging & Delivery
Packaging Details

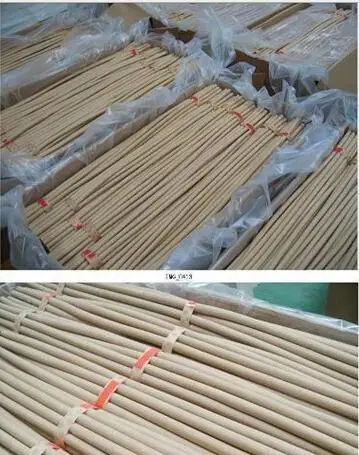

packing in pallets or wooden case according to sizes.
Customized acceptable.
Port
Dalian, Tianjin, Shanghai,Guangzhou,Shenzhen
Lead Time :
5-7 days after received payment

Insulating crepe kraft paper tube high quality crepe kraft paper



Flexible Crepe Paper

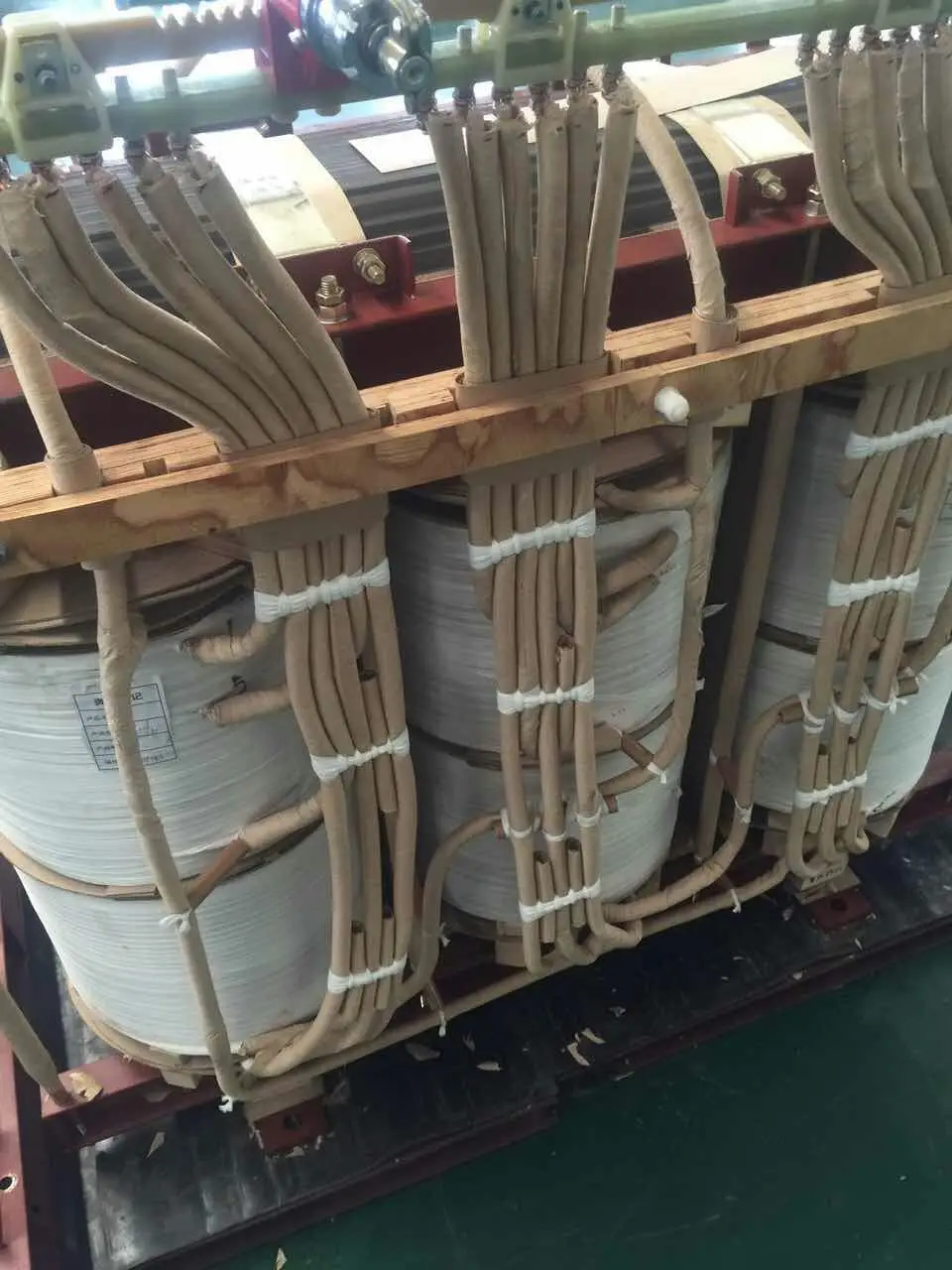

Electrical insulation crepe paper produced by 100% imported pure pulp,through special wrinkling process, characterized by excellent oil-soluble performance, widely applied for the insulation of lapped parts of oil-transformers, mutual inductors and reactors, and wrapping of down-lead parts. helps to improve the electrical and mechanical performance.

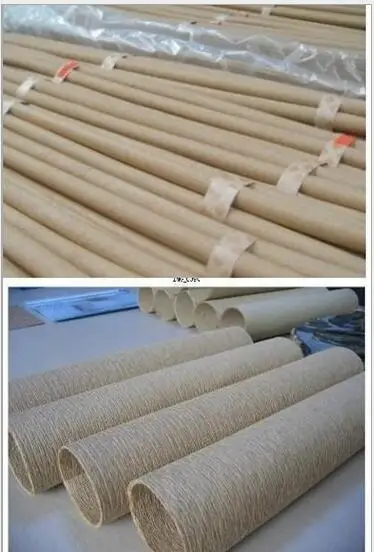

Flexible Crepe Paper Tubes

Crepe paper tubes is produced from electrical grade insulating kraft paper. It is a Class A material for insulation of interconnections of terminals.

ID sizes from 3mm to 40mm, Wall thickness from 1mm to 3mm.

Regular length 1000mm; and 2000mm available.



Features:

1. Insulation class A (105 °C) according to VDE 0530 part 1
2. Made of insulation crepe paper
3. Crepe direction transverse to tube length
4. End of outer layer bonded
5. Good compatibility with liquid dielectrics
6. According to IEC-60554



Technical data:



S.N.ITEMUNITORIGINAL PAPER THICKNESS
0.05mm0.075mm0.08mm0.13mm
1Crepe paper thicknessmm0.35±0.050.38±0.080.40-0.600.70-0.90
2Ash contentless%0.70.70.80.8
3Moistureless%7788
4Ether extractless%0.30.3
5Water extract PH 6.0-8.06.0-8.06.0-8.06.0-8.0
6Pollution oilless% 0.1
7Tensile strengthLongitudinalN30404550
TransversalN20303540
8Flexibility of crepe paper%50
9Breakdown voltageV / layer≥950≥1000≥1000≥1000
10Conductivityms/m  ≤9.0≤10




 Shenyang Youda Insulation Materials Co., Ltd



---- Over 20 years’ experience for Producing and Selling Insulation Materials.



---- Insulation Material Experts for supporting transformers, electric machinery.



---- Best price, customer size available.



---- Delivery speed is fast, 10 to 20 days.



---- High quality products similar to international brands.



---- Offer a wide range of insulation materials, such as laminated boards, bars, tubes, molded products, composite materials, dipping materials, insulating paper, insulating ribbon, insulation varnish, mica products, engineering plastics.
